BEND R7
Unleash your spirit of adventure with the Polygon Bend series – the ultimate companion for boundless exploration and off-road versatility. Engineered with precision and crafted for pure adventure, these bikes are designed to conquer rugged terrains with ease. Responsive handling and agile geometry provide optimal maneuverability, empowering riders to navigate challenging trails and conquer untamed paths with confidence. Whether you’re a seasoned gravel enthusiast or an aspiring off-road adventurer, the Polygon Bend Series offers unparalleled excitement and limitless exploration. Embrace the thrill of the Polygon Bend and let your adventures take flight.
Features
With generous tire clearance, the adventures know no bounds
Unleash your adventurous spirit with our gravel bike’s generous tire clearance, accommodating up to 50c tires. Embark on thrilling bikepacking journeys and conquer any terrain with ease, as you immerse yourself in the boundless exploration

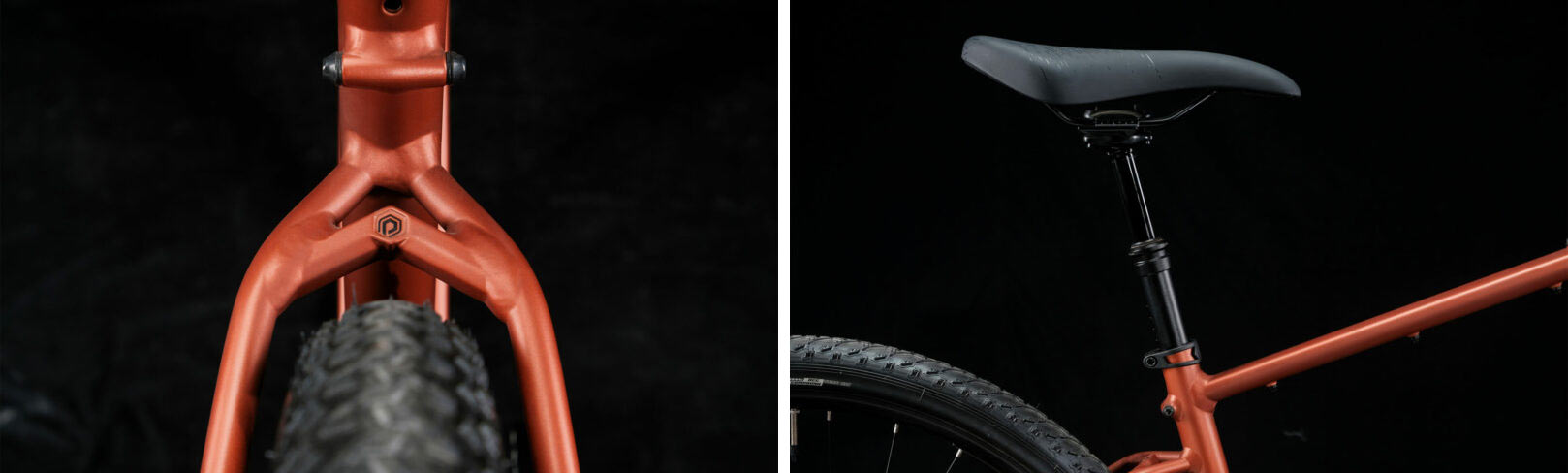

Who needs a dropper post? Us.
Polygon Bend Series provides you with dropper seat post to put you where you want to be; all at your fingertips. Effortlessly adjust your saddle height for technical trails and smooth descents, providing you the freedom to move and stay in control.

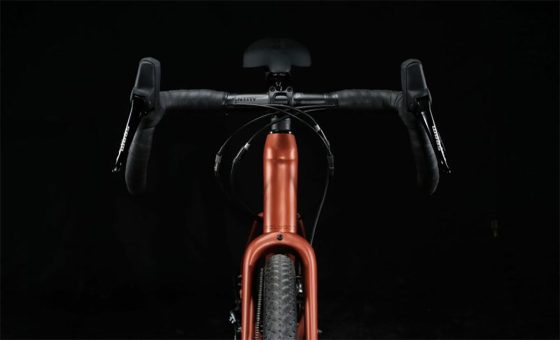

The perfect blend of aerodynamics and handling
Paired with a flared handlebar to enhance aerodynamics in a narrower position, while maintaining optimal handling on wider drops.

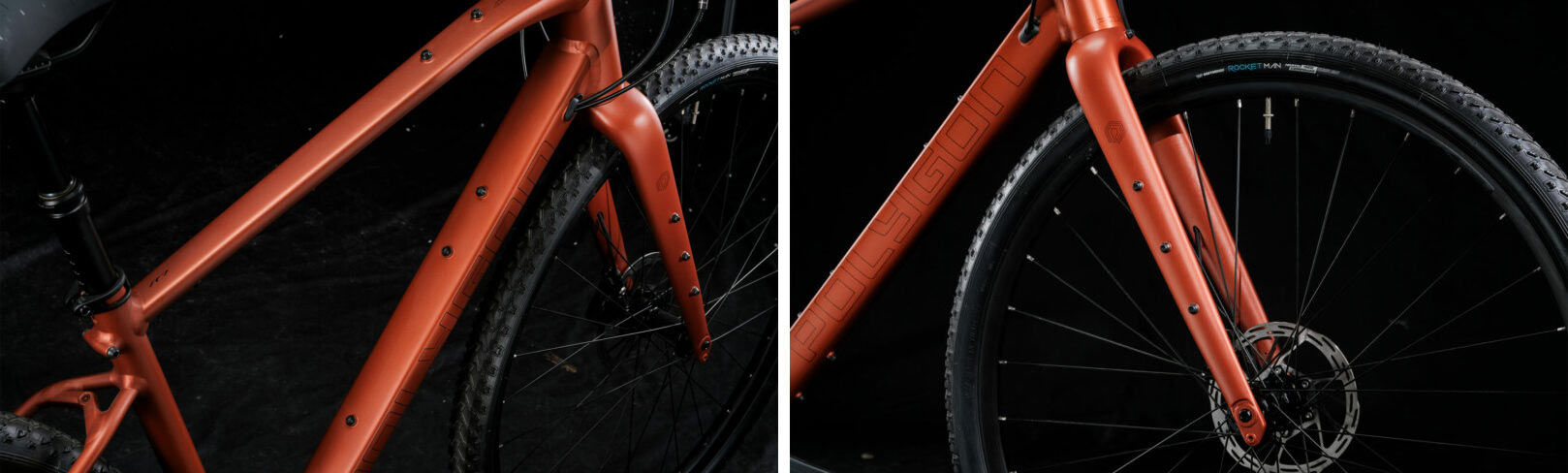

Here, here, and here. Mounts everywhere!
Pack your essentials. Our Polygon Bend Series features an adequate number of mounting bolts for bottles and bags on the seat tube, top tube, and down tube. No need to worry about other essentials for bikepacking; we’ve got you covered with rear carrier bolts and 3 mounts on each side of the fork. Mount up, adventure awaits!

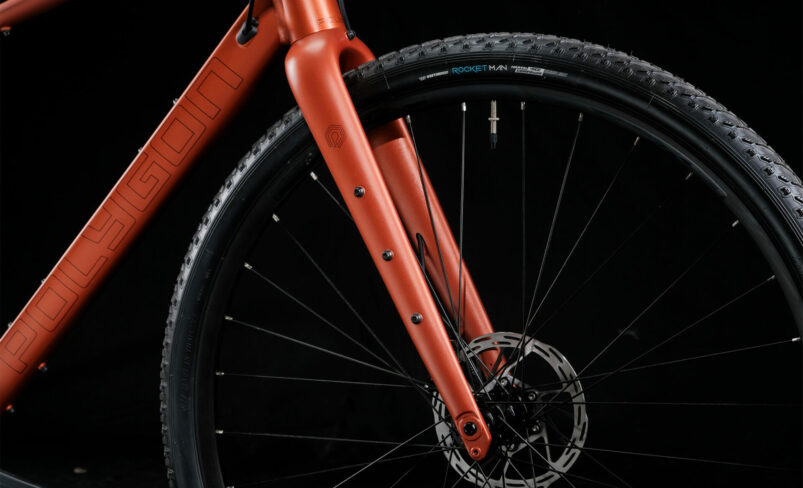

Yin-yang, balance
Don’t hate the rough surfaces of the land. Our seamless yet robust carbon fork is meant to conquer them. It strikes a perfect balance between low-maintenance simplicity and off-road performance, ensuring a comfortable and smooth ride with reduced vibrations. Embrace the perfect harmony.
Specification
Frameset
Drivetrain
Shifter: SRAM APEX 1 11-SPEED BRIFTER
Crank: SRAM APEX 1 40T, MAX: 42T
Cassette: SRAM PG-1130 11-SPEED 11-42T
Rear Derailleur: SRAM APEX 1 11-SPEED
BB: SRAM GXP
Chain: KMC X11-1 FOR 11-SPEED
Pedal: ONE PIECE PP FLAT
Cockpit
Wheel & Tire
| S | M | L | ||
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| Seat Tube Length (A) | 405 | 450 | 495 | 540 |
| Seat Tube Angle (B) | 74.5 | 74 | 73.5 | 73.5 |
| Effective Seat Tube Angle (C) | 74.5 | 74 | 73.5 | 73.5 |
| Head Tube Length (D) | 140 | 165 | 200 | 235 |
| Head Tube Angle (E) | 70 | 70 | 70.5 | 70.5 |
| Effective Top Tube (F) | 520 | 550 | 580 | 610 |
| Bb Height (G) | 282 | 282 | 282 | 282 |
| Bb Offset (H) | 72 | 72 | 72 | 72 |
| Chainstay Length (I) | 440 | 440 | 440 | 440 |
| Wheelbase (J) | 1030 | 1056 | 1078 | 1110 |
| Frame Reach (K) | 364 | 382 | 396 | 416 |
| Frame Stack (L) | 563 | 612 | 621 | 654 |
| Standover Height (M) | 694 | 736 | 781 | 823 |
