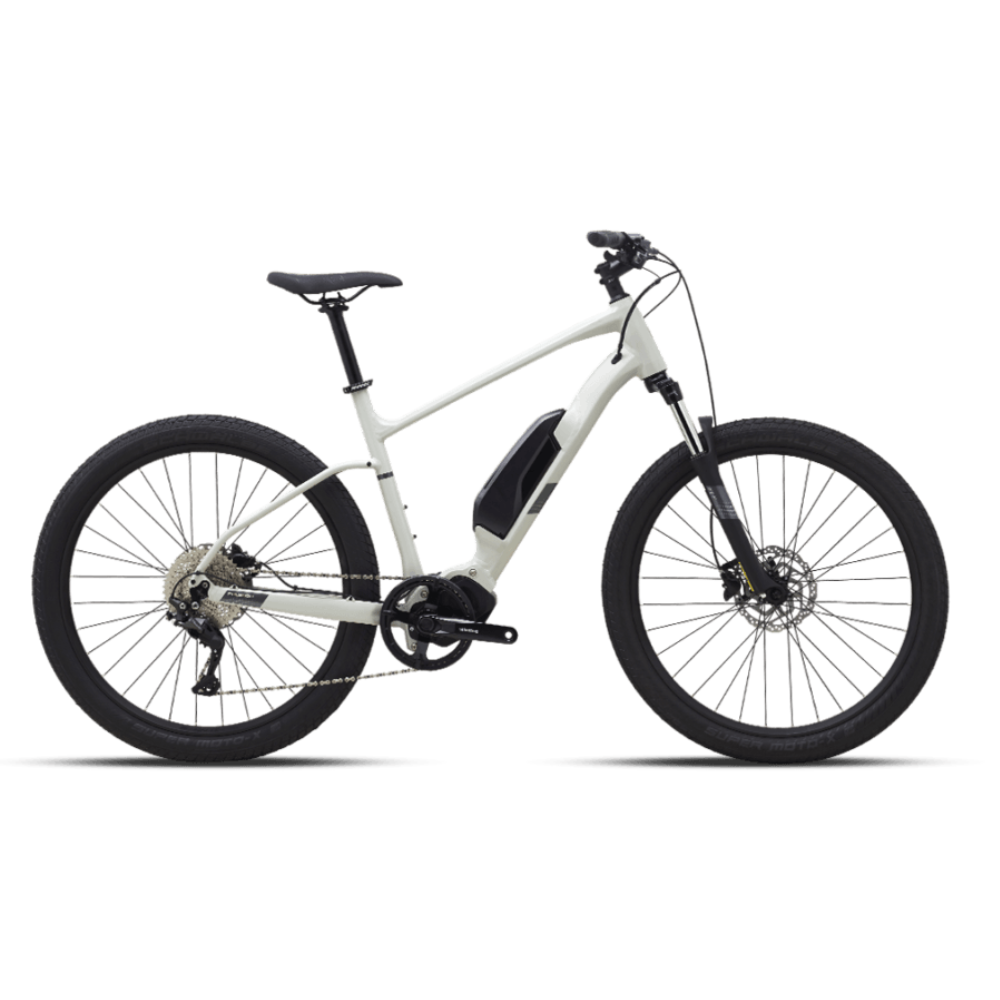

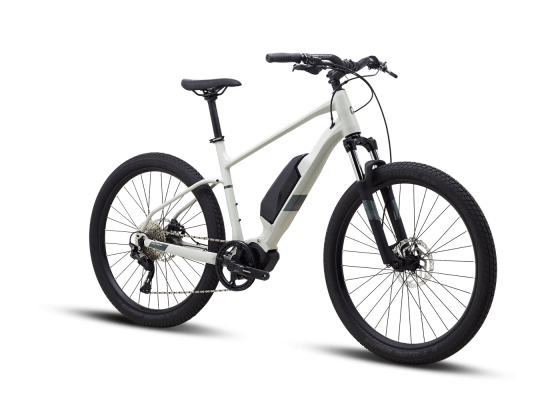

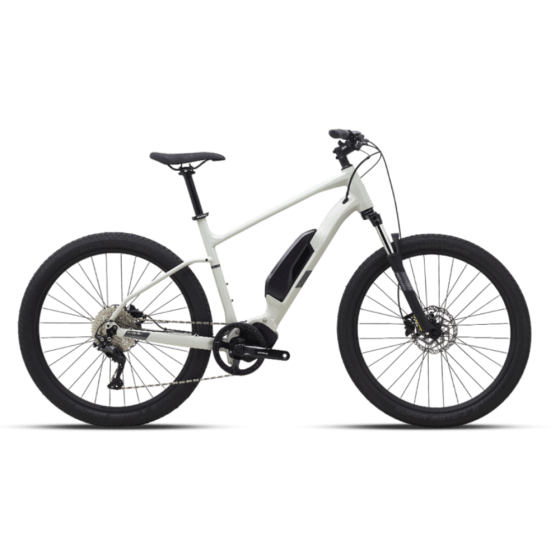

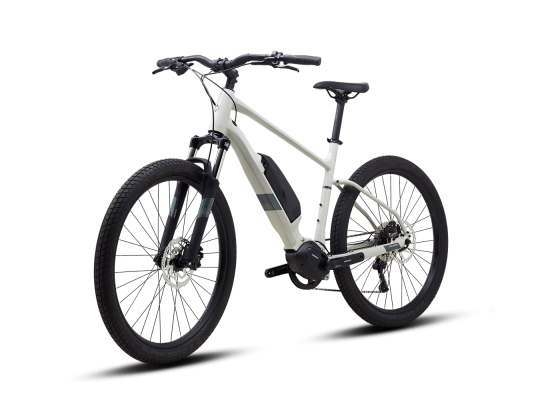

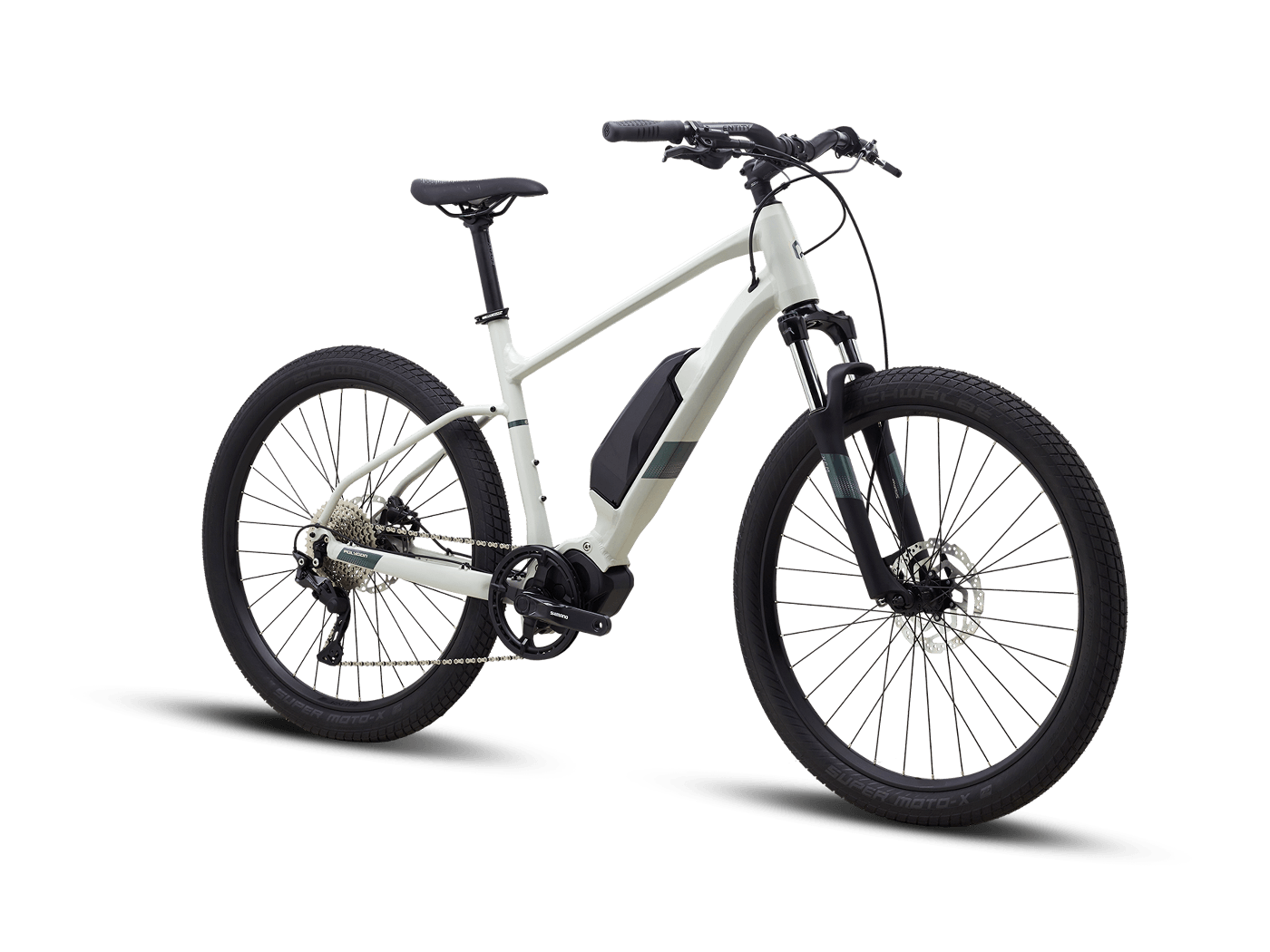

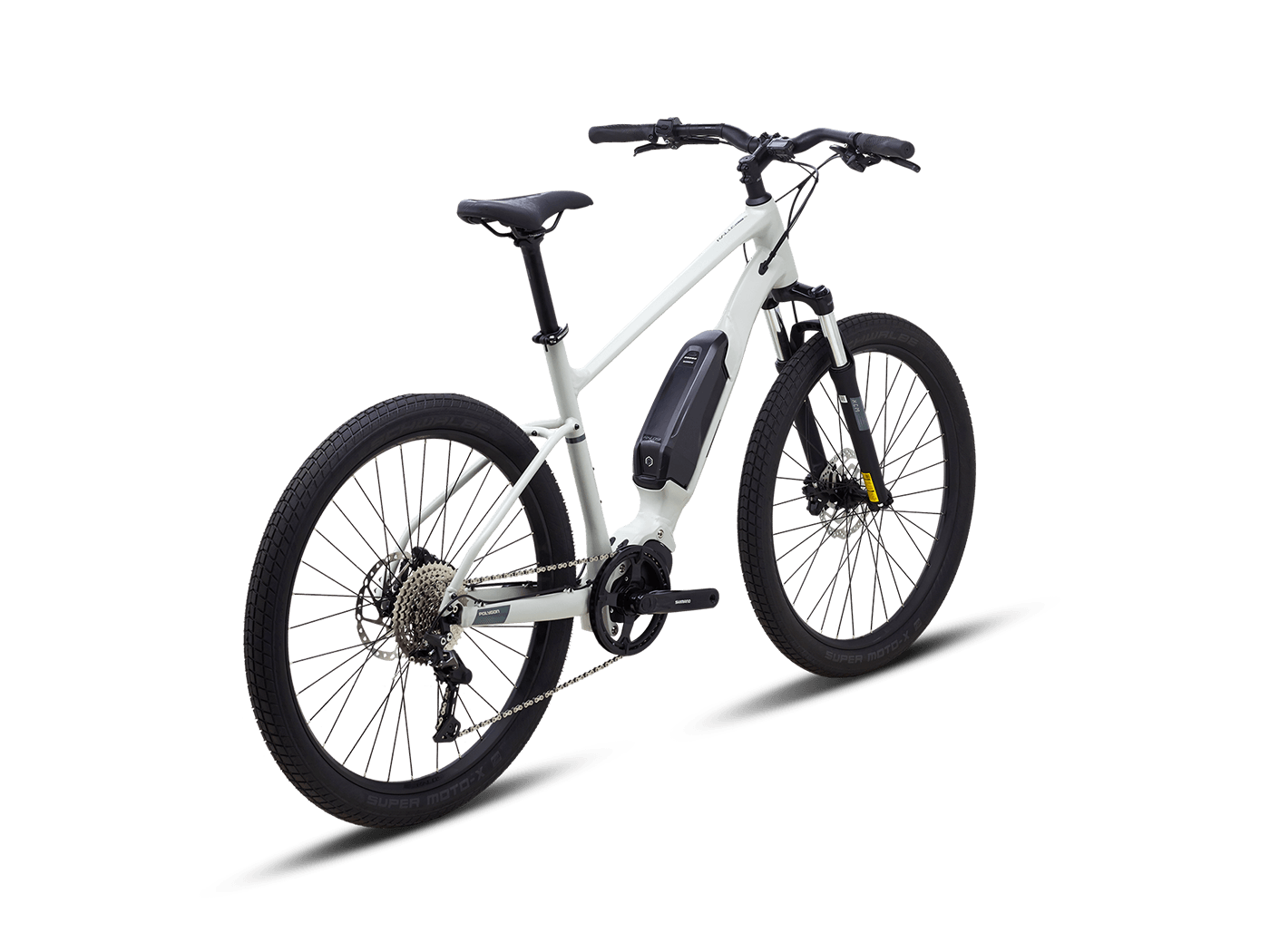

KALOSI LANES EVO HIGH-STEP
SPECIFICATION
The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.
Frameset
Frameset: ALX TREKKING FRAME, ID: 44/56mm
Fork :SUNTOUR XCM HLO 100mm TRAVEL, STEERER: TRAIGHT 1-1/8″
Size: S/M/L
Frame Color: NOBLE GREY
Decal Color: GREEN – WARM GREY
Drivetrain
Shifter: SHIMANO DEORE SL-M5130-R 10-SPEED TRIGGER
Crank: SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG
Cassette: SHIMANO CS-LG400-10 11-43T
Rear Derailleur :SHIMANO DEORE RD-M5130-GS DIRECT ATTACH
BB: SHIMANO DU-E5000 DRIVE UNIT
Chain: SHIMANO CN-LG500
Pedal: PP PEDALS W/ REFLECTOR
Cockpit
Saddle: ENTITY SADDLE, ø7mm
Seatpost: ENTITY EXPERT ALLOY, 30.9 x 300mm
Handlebar: ENTITY EXPERT ALLOY, W: 700mm, BB: 31.8mm, R/D: 25mm, B: 18degree
Handlestem: ENTITY XPERT ALLOY, EXT: 60mm (S) / 80MM (M, L), BB: 31.8mm, R/D: 7degree
Headset: ZERO STACK (ZS) SEMI INTEGRATED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/30
Wheel & Tire
Wheel Set: ALLOY DOUBLE WALL FOR DISC BRAKE
Wheel Size: 27.5″
Tire: SCHWALBE SUPER MOTO-X 27.5″x2.40″ (584-62)
Rim: ALLOY DOUBLE WALL DISC 27.5”
Hub:
F: SHIMANO HB-TX505 QRx100mm 32H CENTERLOCK /
R: SHIMANO FH-TX505 QRx135mm 32H CENTERLOCK
Brake
Brake Lever: SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Brake Caliper: SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Rotor: SHIMANO F:SM-RT10 R:RT-EM600 180mm CENTER LOCK
Electric Parts
Motor: SHIMANO DU-E5000 DRIVE UNIT 32KM/H
Sensor: SHIMANO SM-DUE11
Battery: SHIMANO BT-E8010

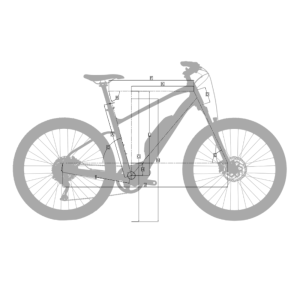

GEOMETRY AND SIZE
| S | M | ||
|---|---|---|---|
| Height (cm) | 150-160 | 160-170 | 170-180 |
| Seat Tube Length (A) | 460 | 490 | 520 |
| Seat Tube Angle (B) | 74.5 | 74 | 73.5 |
| Effective Seat Tube Angle (C) | 74.5 | 74 | 73.5 |
| Head Tube Length (D) | 140 | 170 | 200 |
| Head Tube Angle (E) | 71 | 71.5 | 71.5 |
| Effective Top Tube (F) | 546 | 570 | 594 |
| Bb Height (G) | 287 | 287 | 287 |
| Bb Offset (H) | 70 | 70 | 70 |
| Chainstay Length (I) | 460 | 460 | 460 |
| Wheelbase (J) | 1067 | 1082 | 1101 |
| Frame Reach (K) | 390 | 400 | 410 |
| Frame Stack (L) | 561 | 592 | 620 |
| Standover Height (M) | 704 | 736 | 766 |
