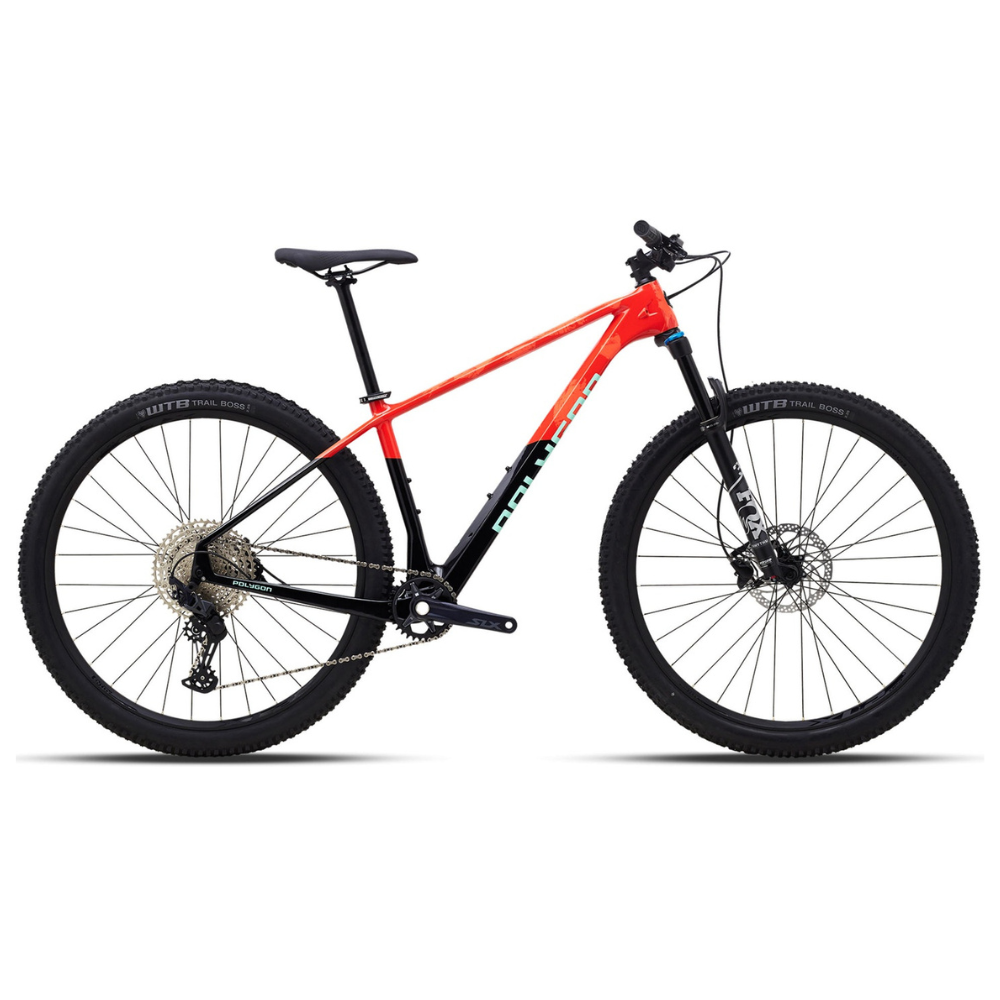

SYNCLINE C5 RED BLACK 29″

2.050,00

  • Frameset

    ACX XC PERFORMANCE

    Fork

    FOX 32 RHYTHM, 120mm

    Rear Shock

  • Drivetrain
    Shifter

    SHIMANO SLX SL-M7100-R 12-SPEED TRIGGER

    Crank

    SHIMANO SLX FC-M7100-1 32T 2-PIECE-CRANK

    Cassette

    12 SPEED 11-51T

    Rear Derailleur

    SHIMANO SLX RD-M7100-SGS DIRECT ATTACH

    BB

    SHIMANO BB-MT500-PA

    Chain

    KMC NEW X-12

    Pedal

    ALLOY CAGE PEDAL W/ REFLECTOR

  • Cockpit
    Saddle

    ENTITY VOID SADDLE

    Seatpost

    ENTITY XPERT, 27.2x350mm

    Handlebar

    ENTITY XPERT, W: 740mm, BB: 31.8mm, R/D: 12mm, B: 9degree

    Handlestem

    ENTITY XPERT, EXT: 60mm, BB: 31.8mm, R/D: 7degree

    Headset

    INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40

  • Wheel & Tire
    Wheel Set

    ALLOY DOUBLE WALL

    Wheel Size

    27.5 / 29

    Tire

    WTB TRAIL BOSS TIRE, 27.5×2.25 / 29×2.25

    Rim

    584-30 / 622-30 32H FOR TYRE 584 / 622-54/76 TUBELESS READY

  • Brake
    Brake Lever

    SHIMANO MT400 HYDRAULIC DISC BRAKE

    Brake Caliper

    SHIMANO MT400 HYDRAULIC DISC BRAKE

    Rotor

    FRONT:180mm REAR:160mm CENTER-LOCK

Geometry & Size
S (27.5”) M (27.5”) M (29”) L (29”) L (29”)
Height (cm) 152-165 162-175 162-175 172-185 172-185
Seat Tube Length (A) 380 420 420 460 500
Seat Tube Angle (B) 73 73 73 73 73
Effective Seat Tube Angle (C) 75.5 75.3 75.3 75.3 75.5
Head Tube Length (D) 100 120 100 120 140
Head Tube Angle (E) 67 67 67 67 67
Effective Top Tube (F) 569 594.6 597.7 621 649.15
Bb Height (G) 308 308.5 307.5 307.5 304.5
Bb Offset (H) 45 45 65 65 65
Chainstay Length (I) 428 425 435 435 435
Wheelbase (J) 1106.94 1134.8 1149.5 1176.9 1204.76
Frame Reach (K) 410 430 430 450 470
Frame Stack (L) 596.6 615 633.2 651.6 670
Standover Height (M) 690.9 729.2 730.8 763.7 779.2

Description

Designed as a top performing XC trail machine with modern geometry. Featuring an ultra light and stiff carbon frame designed around 27.5” and 29″ wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
